| No. |
Functions |
No. |

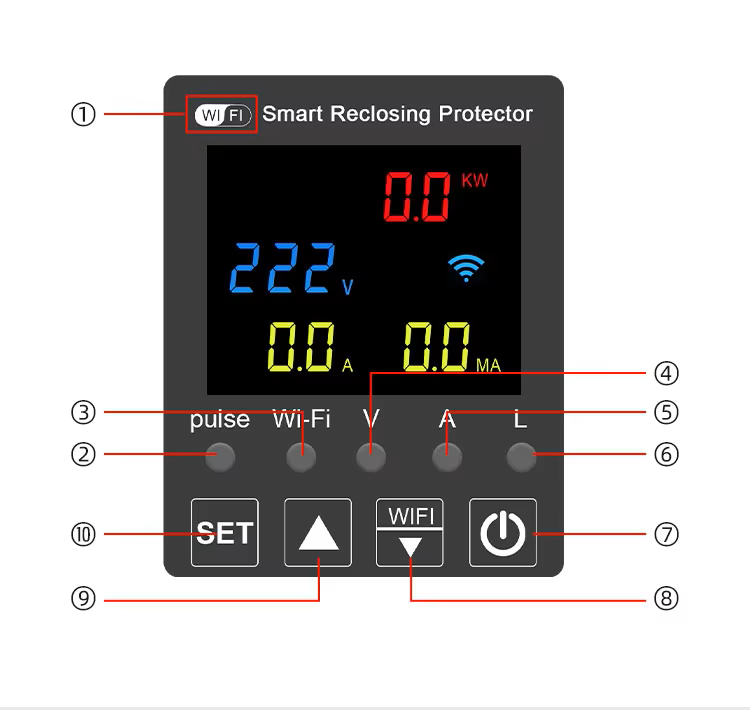

Product Panel Annotation Drawing |
| 1 |
Remote control ON/OFF at anytime from anywhere by phone |
① |
Default logo area, wifi can customize exclusive logo |
| 2 |
Review current, voltage, leakage current, total kWh on phone |
② |
Kilo‑Watt Hour Meter Pulse indicator |
| 3 |
Timer function in smartlife TUYA app |
③ |
WIFI indicator |
| 4 |
Set over voltage/under voltage/over current/leakage current/Temperature in app or by manual |
④ |
Over/Under Voltage Alarm indicator |
| 5 |
Under voltage protection |
⑤ |
Over‑current Alarm indicator |
| 6 |
Over voltage protection |
⑥ |
Leakage Alarm Indicator |
| 7 |
Over current protection |
⑦ |
Manual switch |
| 8 |
Leakage protection |
⑧ |
Adjustment key‑Wifi key: Long press 5s to pair Wifi |
| 9 |
Prepaid function |
⑨ |
Adjustment key+Test key: Long press 3s to test leakage |
| ‑ |
‑ |
⑩ |
Set key: Long press 3s to enter setting interface |
