Tuya WiFi Smart Wall Socket 20A Double Outlet with USB-C & USB-A, Tempered Glass Panel, Energy Monitoring | GEL

Product Overview

This is a double wall socket that combines two 20A AC outlets, one USB-C port and one USB-A port in a single tempered glass panel. It connects over 2.4GHz WiFi to the Tuya Smart / Smart Life app, so you can switch each outlet, set schedules, monitor power consumption and control the socket by voice. The panel uses tempered glass with a PC flame-retardant shell, fits a 147 x 86mm wall plate, and comes in white or black.

What You Get in One Panel

• Two AC outlets (standard grounding), 20A total peak current
• One USB-C port and one USB-A port, so phones and tablets charge without a charger
• Tempered glass front panel with a PC flame-retardant shell
• Power statistics: live wattage and consumption history in the app
• Three control methods: touch panel, mobile app, AI voice

USB-C and USB-A Charging

The two USB ports sit beside the AC outlets and charge directly from the socket, which removes the need for a separate charger in kitchens, bedrooms and hotel rooms.

• USB-C: phones, tablets, earbuds, power banks and other USB-C devices
• USB-A: older phones, accessories and small electronics
• The two USB ports share the socket's charging output, so a single large device charges fastest when the other port is free

The USB ports work whenever the socket has power; you can also switch them together with the AC outlets in the app.

20A High-Current Output: What It Can Run

With a 20A total peak current, this socket handles loads that ordinary 10A or 13A sockets cannot, such as:

• Air conditioners and large split units
• Water heaters and instant water boilers
• Kitchen appliances: ovens, microwaves, kettles, induction hobs
• Workshop tools and high-power cleaning equipment
• EV charging adapters for slow overnight charging

At 220-240V, 20A equals roughly 4,400-4,800W. Check the rated current of your appliance before connecting, and do not exceed the 20A total across both outlets.

Energy Monitoring in the App

The socket reports power statistics through the Tuya app, so you can see how much a device actually consumes instead of estimating from the label.

• Live power draw for the connected device
• Daily, weekly and monthly consumption history
• Schedules and countdown timers to switch off at a set time
• Scene and automation triggers based on the socket's state

This is useful for finding standby power waste, checking whether an older appliance is running inefficiently, or billing power in rental and hotel rooms.

Touch, App and Voice Control

• Touch panel: tap the glass panel to switch each outlet on or off
• App control: switch, schedule and monitor from anywhere through Tuya Smart / Smart Life
• Voice control: works with Alexa and Google Assistant for hands-free switching
• Scene mode: group the socket with lights and curtains for one-tap scenes
• Whole-house linkage: trigger the socket from other Tuya devices, or use it as a trigger

WiFi Setup and Troubleshooting

The socket connects on 2.4GHz WiFi only.

1. Install the Tuya Smart or Smart Life app and create an account

2. Power on the socket and hold the panel button until the indicator blinks quickly

3. In the app, tap Add Device and let it scan, or select the socket manually

4. Enter your 2.4GHz WiFi name and password

If pairing fails, check these in order: the phone is on the 2.4GHz band (not 5GHz), the password has no special characters that fail entry, the router is not using a hidden SSID, and the socket is within range during pairing.

Specifications

• Rated current: 20A (total, peak)
• Rated voltage: 110V / 240V
• Input voltage: 100-240V AC, 50/60Hz
• AC outlets: 2, standard grounding
• USB ports: 1 x USB-C, 1 x USB-A (shared output)
• Communication: WiFi 2.4GHz
• Control methods: touch panel, app, AI voice
• Power statistics: yes, live and historical
• Panel material: tempered glass
• Shell material: PC flame retardant

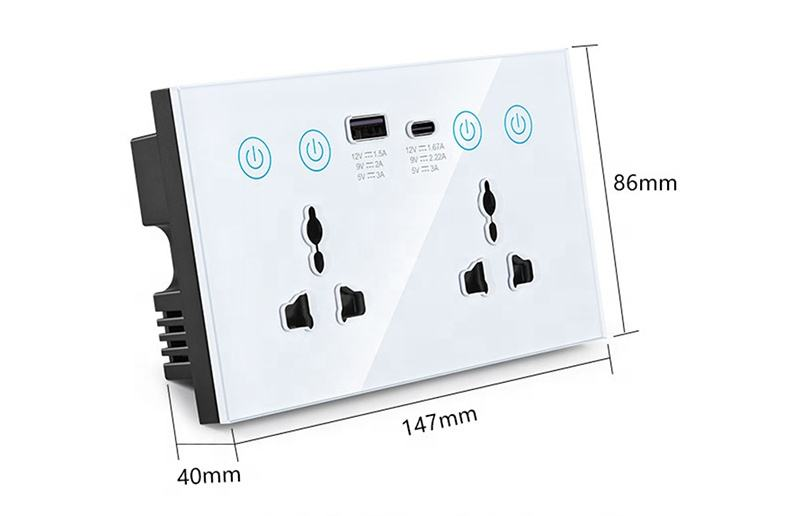

• Product size: 147 x 86 x 40mm

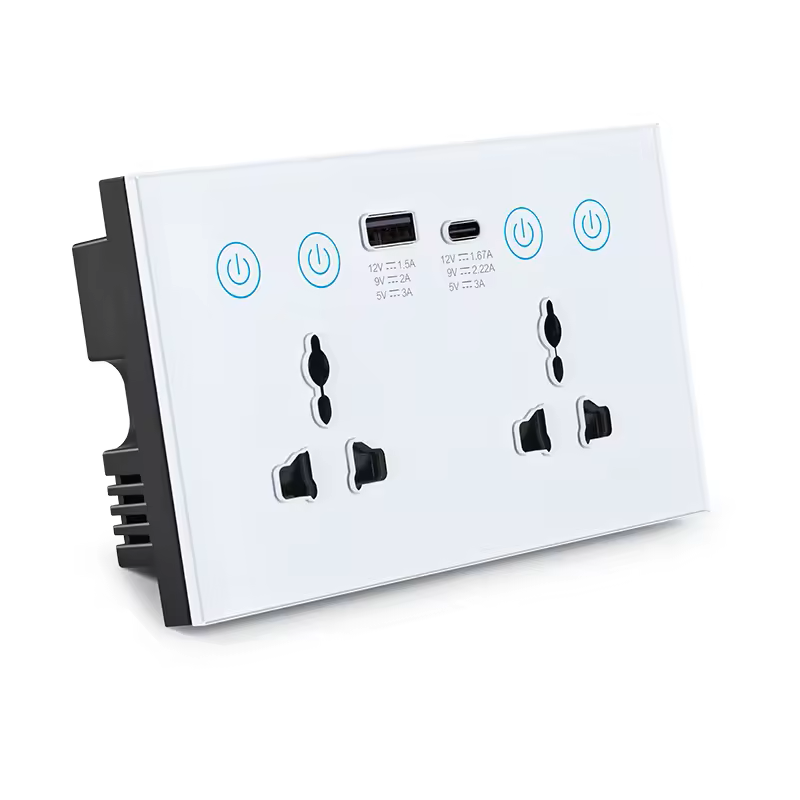

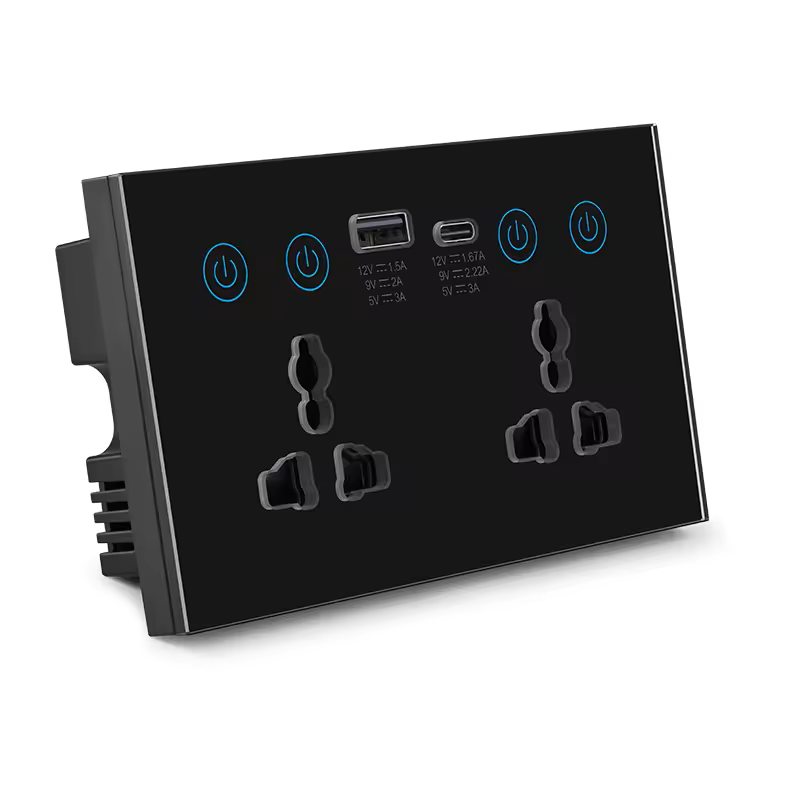

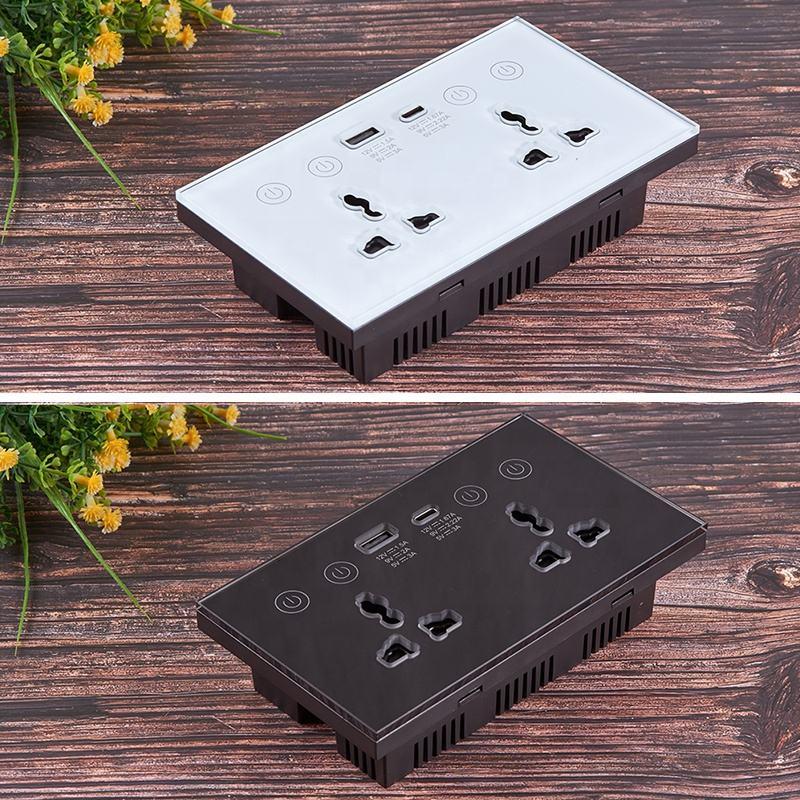

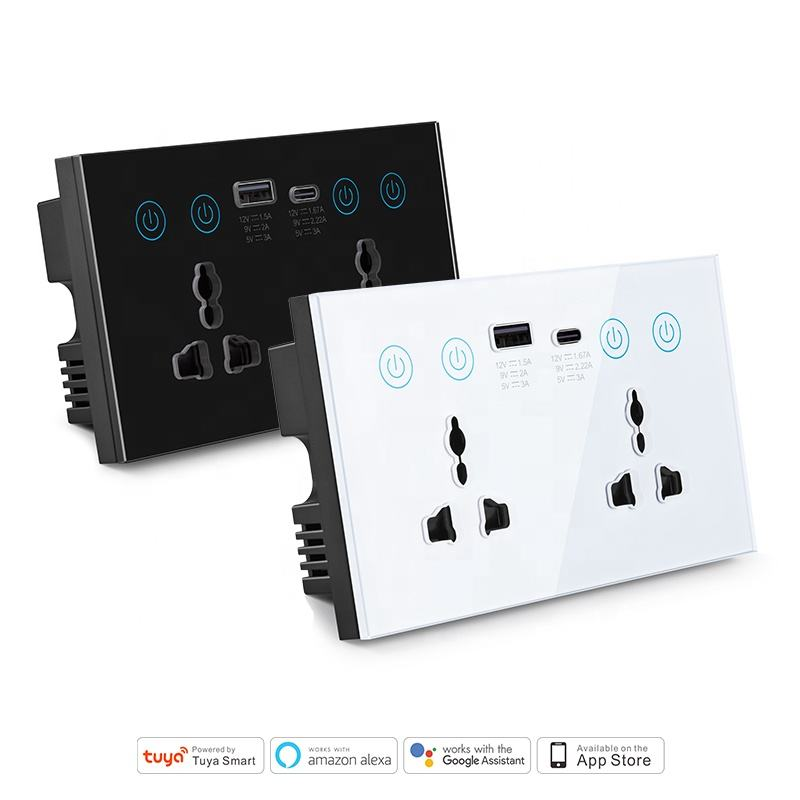

• Color: white, black
• Gross weight: 0.5kg per unit
• Plug standard: UK / EU / US (select at order)

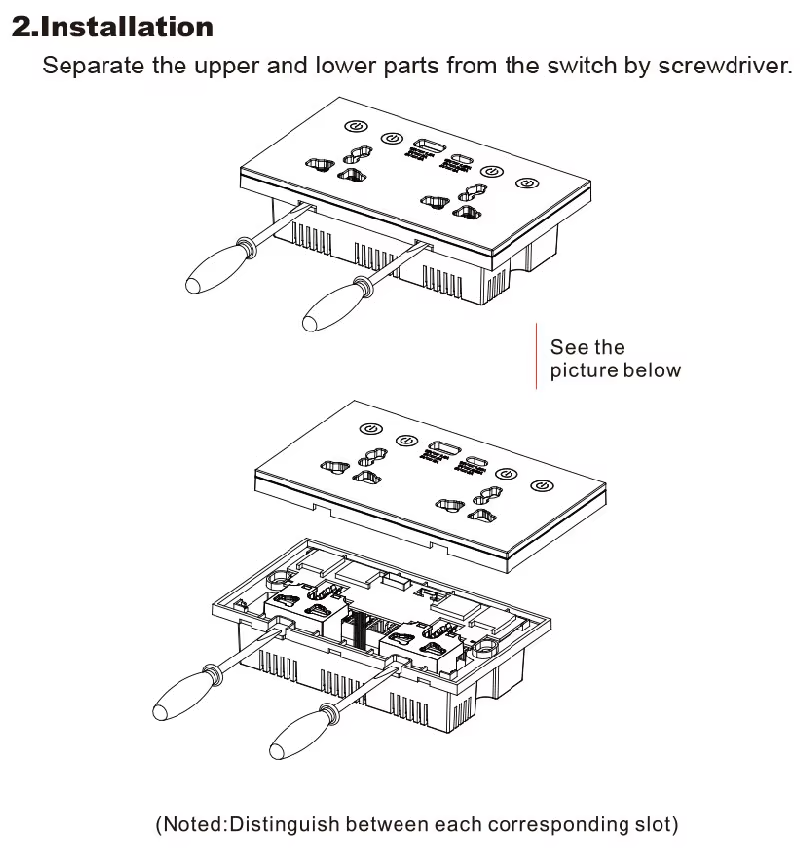

Installation Requirements

• Requires live, neutral and earth wires; this is a standard socket circuit, not a switch-only circuit
• Mount on a wall box at least 40mm deep (47mm recommended for easier cable routing)
• Switch off the circuit breaker before wiring and verify the circuit is dead

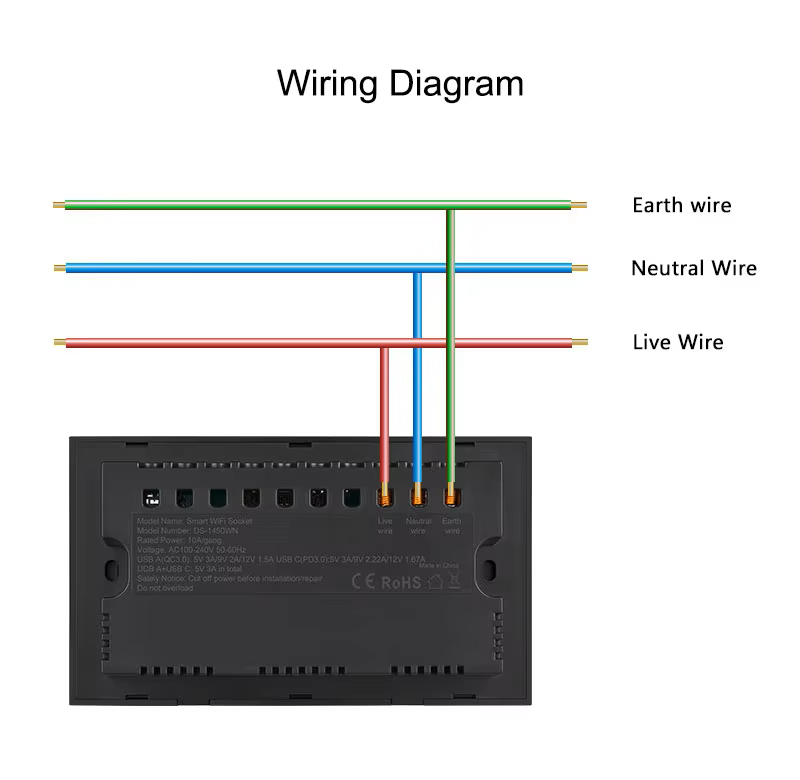

• Connect live to L, neutral to N and earth to the earth terminal, following the wiring diagram
• Tighten terminal screws to the torque in the manual; loose terminals are the most common cause of overheating
• For a 20A circuit, confirm the breaker and cable gauge are rated for the load

Typical Applications

• Residential kitchens, living rooms, bedrooms and balconies
• Air conditioner and water heater outlets that need more than 13A
• Hotels and serviced apartments that bill or limit power per room
• Offices and meeting rooms with shared appliances
• Rental properties where remote switching saves site visits

Frequently Asked Questions

1. What is this Tuya smart wall socket?

A double wall socket with two 20A AC outlets, one USB-C port and one USB-A port, controlled by touch, app or voice and connected over 2.4GHz WiFi.

2. Does it need a neutral wire?

Yes. It needs live, neutral and earth, like any wall socket. It cannot be installed on a switch-only circuit with just a live wire.

3. Can the USB ports charge a laptop?

They are designed for phones, tablets, earbuds and similar devices. High-power laptops need their own adapter, since the two USB ports share one charging output.

4. What is the maximum load?

20A total across both outlets, roughly 4,400-4,800W at 220-240V. Check the appliance's rated current and stay within 20A in total.

5. Does it measure power consumption?

Yes. The app shows live power draw plus daily, weekly and monthly consumption history.

6. Does it work with Alexa and Google Home?

Yes. Both are supported through the Tuya Smart / Smart Life skill, and the panel also works by touch without any app.

7. Why does it fail to connect to WiFi?

In most cases the phone is on a 5GHz network. The socket only supports 2.4GHz. Also check the password, hidden SSID settings and signal strength during pairing.

8. What colors and sizes are available?

White and black, with a 147 x 86mm panel, 40mm deep, in UK, EU or US plug standard.
